6 - Maintenance and Care | Owner Maintenance
Running lights/Position lights
(With LED headlights)
The LED bulb cannot be replaced as a single unit because it is an integrated unit.
The LED bulb has to be replaced with the unit.
We recommend an Authorised Mazda Repairer when the replacement is necessary.
Front direction indicator lights, Running lights * /Position lights (With halogen headlights)
1. If you are changing the right bulb, start the engine, turn
the steering wheel all the way to the left, and turn off
engine.
If you are changing the left bulb, turn the steering wheel
to the right, and turn off engine.
2. Make sure the headlight switch is off.

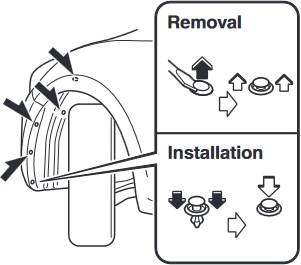

3. Pull the centre of each plastic retainer and remove the
retainers.
4. Turn the screw anticlockwise and remove it,
and then partially peel back the mudguard.

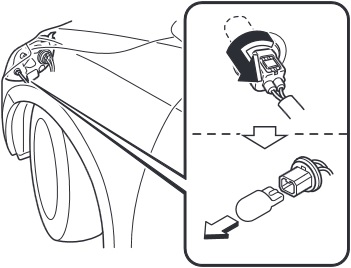

5. Turn the socket and bulb assembly anticlockwise
and remove it.
6. Disconnect the bulb from the socket.
Front direction indicator lights
