6 - Maintenance and Care | Owner Maintenance

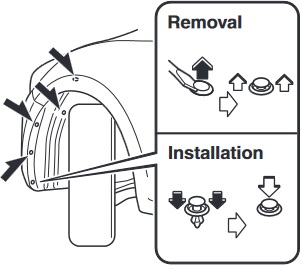

3. Pull the centre of each plastic
retainer and remove the retainers.
5. Disconnect the connector from the bulb.
4. Turn the screw anticlockwise and remove it,
and then partially peel back the mudguard.
6. Detach the sealing cover from the bulb.
7. Unhook the bulb retaining spring.
8. Swing the retaining spring out and away to free the headlight bulb.
9. Carefully remove the headlight bulb from the socket by pulling it straight back.
10. Replace the bulb.
11. Install the new bulb in the reverse order of the removal procedure.
NOTE
* To replace the bulb, contact an expert repairer, we recommend an Authorised Mazda
Repairer.
* If the halogen bulb is accidentally touched, it should be cleaned with rubbing
alcohol before being used.
* Use the protective cover and carton of the replacement bulb to dispose of the old
bulb promptly out of the reach of children.
* When reinstalling the sealing cover, make sure it is fitted correctly.
