6 - Maintenance and Care  |  Owner Maintenance

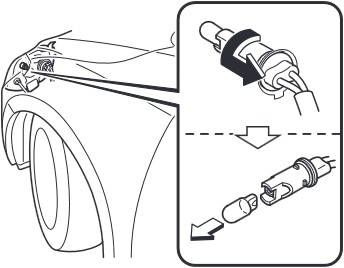

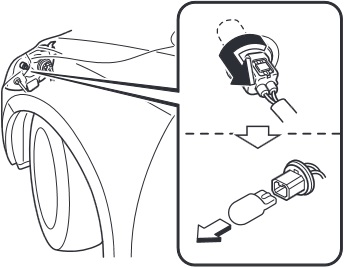

Running lights/Position lights (With halogen headlights)*

7. Install the new bulb in the reverse order of the

    removal procedure.

Front fog lights *

1. Make sure the ignition is switched  off, and the fog

    light switch is off.

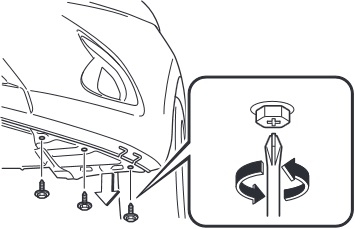

2. Turn the screw anticlockwise and remove it, and then

    partially peel back the mudguard.

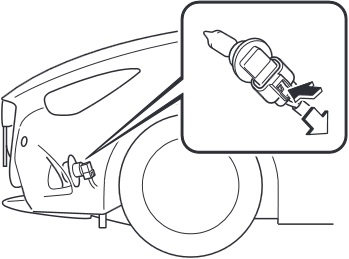

Position lights (With halogen headlights) *

3. Disconnect the connector from the unit by pressing

    the tab on the connector with your finger and pulling

    the connector downward.

* Some models.
