Key Battery Replacement
If the buttons on the transmitter are inoperable and the operation indicator light does not flash, the battery may be dead.
Replace with a new battery before the transmitter becomes unusable.
See Also - Remote control, about/open . page 3-03
CAUTION
* Make sure the battery is installed correctly. Battery leakage could occur if it is not installed correctly.
* When replacing the battery, be careful not to touch any of the internal circuitry and electrical terminals,
bend the electrical terminals, or get dirt in the transmitter as the transmitter could be damaged.
* There is the danger of explosion if the battery is not correctly replaced.
* Dispose of used batteries according to the following instructions.
# Insulate the plus and minus terminals of the battery using cellophane or equivalent tape.
# Never disassemble.
# Never throw the battery into fire or water.
# Never deform or crush.
* Replace only with the same type battery (CR2025 or equivalent).
The following conditions indicate that the battery power is low:
* The KEY indicator light (green) flashes in the instrument cluster for
about 30 seconds after the engine is turned off.
* The system does not operate and the operation indicator light on the
transmitter does not flash when the buttons are pressed.
* The system's operational range is reduced.
Replacing the battery at an Authorised Mazda Repairer is recommended to prevent damage to the key.
If replacing the battery by yourself, follow the instruction below.
Replacing the key battery

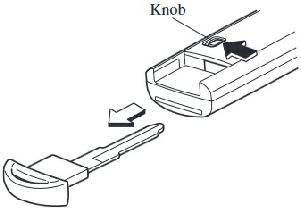

1. Press the knob and pull out the auxiliary key. (Continued on next page > Next page )
