6 - Maintenance and Care | Owner Maintenance

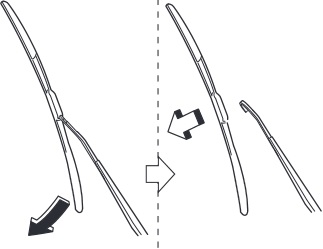

3. Tilt the blade assembly and remove it from the arm.

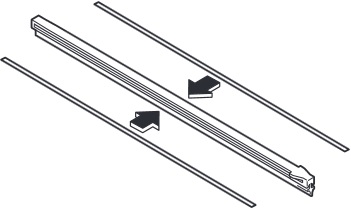

5. Remove the metal stiffeners from each blade rubber and
install them in the new blade.
CAUTION
To prevent damage to the windscreen let the wiper arm down easily, do not let it slap down on the windscreen.

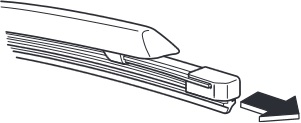

4. Pull down the blade rubber and slide it out of blade holder.
CAUTION
* Do not bend or discard the stiffeners.
You need to use them again.
* If the metal stiffeners are switched, the blade's
wiping efficiency could be reduced.
So do not use the driver's side metal stiffeners
on the passenger's side, or vice versa.
* Be sure to reinstall the metal stiffeners in the
new blade rubber so that the curve is the same
as it was in the old blade rubber.

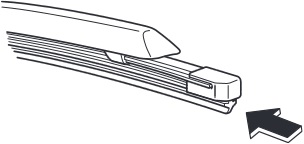

6. Carefully insert the new blade rubber.
Then install the blade assembly in the reverse
order of removal.
