Wiper Blades
CAUTION
* Hot waxes applied by automatic car washers have been known to affect the wiper's ability to clean windows.
* To prevent damage to the wiper blades, do not use petrol, paraffin, paint thinner, or other solvents on or near them.
* When the wiper lever is in the AUTO position and the ignition is switched ON, the wipers may move automatically in the following cases:
* If the windscreen above the rain sensor is touched.
* If the windscreen above the rain sensor is wiped with a cloth.
* If the windscreen is struck with a hand or other object.
* If the rain sensor is struck with a hand or other object from inside the vehicle.
Be careful not to pinch hands or fingers as it may cause injury, or damage the wipers.
When washing or servicing the vehicle, make sure the wiper lever is in the OFF position.
Contamination of either the windscreen or the blades with foreign matter can reduce wiper effectiveness.
Common sources are insects, tree sap, and hot wax treatments used by some commercial car washes.
If the blades are not wiping properly, clean the window and blades with a good cleaner or mild detergent; then rinse thoroughly with clean water. Repeat if necessary.
Replacing Windscreen Wiper Blades
When the wipers no longer clean well, the blades are probably worn or cracked. Replace them.
CAUTION
To prevent damage to the wiper arms and other components, do not try to sweep the wiper arm by hand.
NOTE
When raising both windscreen wiper arms, raise the driver's side wiper arm first. When lowering the wiper arms, slowly lower the wiper arm from the passenger's side first while supporting it with your hand. Forcefully lowering the wiper arms could damage the wiper arm and blade, and may scratch or crack the windscreen.
(Type A)

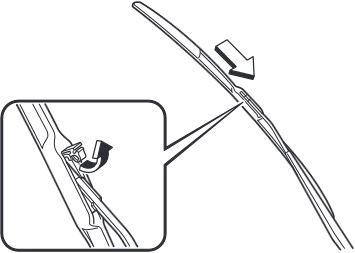

1. Raise the wiper arm.
2. Open the clip and slide the blade assembly in the direction of the arrow.
