4 - When Driving |   Instrument Cluster and Display

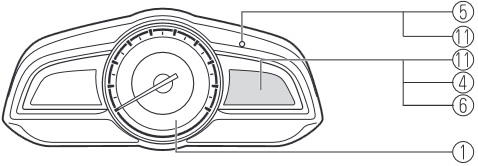

Meters and Gauge

Analog Speedometer Type | Type B

Steering Switch *

* Some models.

1. Speedometer  . . . . . . . . . . . . . . . . . page 4-02

2. Odometer, Trip Meter and Trip Meter Selector . Not fitted

3. Tachometer . . . . . . . . . . . . . . . . . . page 4-06

4. Fuel Gauge . . . . . . . . . . . . . . . . . . page 4-07

5. Instrument Panel Illumination  . . . . . . . . page 4-08

6. Outside Temperature Display  . . . . . . . . . page 4-09

7. Cruise Control Set Vehicle Speed Display . . . page 4-09

8. Active Driving Display . . . . . . . . . . . . Not fitted

9. Trip Computer and INFO Switch  . . . . . . . . page 4-09

10 Speed Unit Selector  . . . . . . . . . . . . . page 4-02

11 Odometer, Trip Meter, Trip Computer

       and Trip Meter Selector  . . . . . . . . . page 4-04
