[Type A]

Page 6 of 52

4 - When Driving |   Instrument Cluster and Display

Current fuel economy mode

This mode displays the current fuel economy by calculating the

amount of fuel consumption and the distance travelled.

Current fuel economy will be calculated and displayed every 2 seconds.

When you've slowed to about 5 km/h (3 mph), - - - L/100 km (- - - mpg) will be displayed.

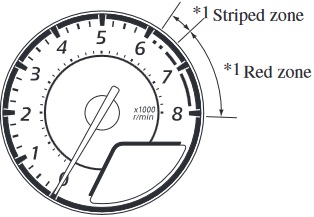

Tachometer *

The tachometer shows engine speed in thousands of revolutions per minute (rpm).

Caution

Do not run the engine with the tachometer needle in the RED ZONE.

This may cause severe engine damage.

*1  The range varies depending on the type of gauge.

[Type B]

* Some models.
