2 - Essential Safety Equipment | Child Restraint

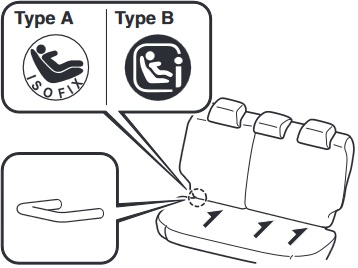

Expand the open seams on the rear of the seat bottom slightly to verify the locations of the ISOFIX anchor.
NOTE
The markings above the ISOFIX anchors indicate the locations of the ISOFIX anchors for the attachment of a child-restraint system.
If the seat is equipped with a head restraint, remove it.
Refer to Head Restraints on page 2-10.
Secure the child-restraint system using the ISOFIX anchor, following the child-restraint system manufacturer's instruction.

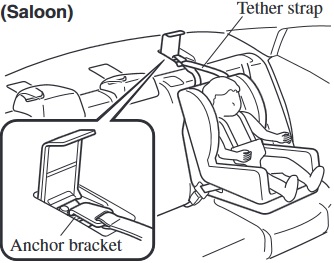

If your child-restraint system came equipped with a tether, that probably means it is very important to properly secure the tether for child safety. Please carefully follow the child-restraint system manufacturer's instructions when installing tethers (page 2-35).
WARNING
Always attach the tether strap to the correct
tether anchor position:
Attaching the tether strap to the incorrect tether anchor position is dangerous. In a collision, the tether strap could come off and loosen the child-restraint system. If the child-restraint system moves it could result in death or injury to the child.
Always remove the head restraint and install
child-restraint system:
Installing a child-restraint system without removing the head restraint is dangerous. The child-restraint system cannot be installed correctly which may result in death or injury to the child in a collision.
