2 - Essential Safety Equipment  |  Seats

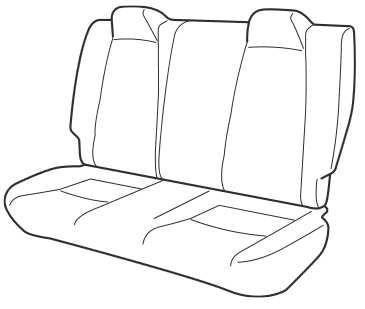

Head  Restraints


Your vehicle is equipped with head restraints on front seats, rear outboard seats * and the rear centre seat *.  The head restraints are intended to help protect you and the passengers from neck injury.



WARNING


Always drive with the head restraints installed when seats are being used and make sure they are properly adjusted.  In addition, always raise the head restraints on all rear seat when they are being used:

  Driving with the head restraints adjusted too low or removed is dangerous.  With no support behind your head, your neck could be seriously injured in a collision.

NOTE (Some models)

The rear outboard head restraints are non-adjustable.

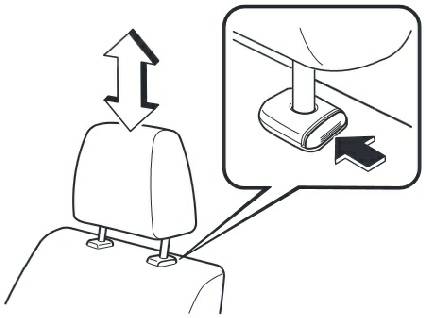

Height Adjustment

Adjust the head restraint so that the centre is even with the top of the passenger's ears.


To raise a head restraint, pull it up to the desired position.


To lower the head restraint, press the stop-catch release, then push the head restraint down.

Front outboard seat

* Some models.
