9 - Specifications | Specifications
Electrical System

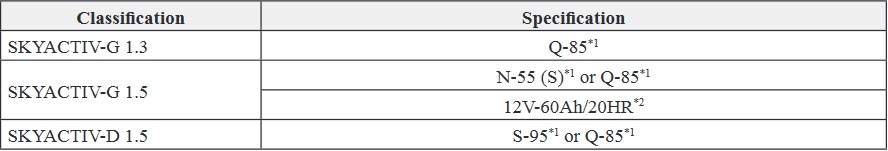

Battery
*1 N-55 (S), Q-85 or S-95 is designed for i-stop system (FOR STOP & START) /i-ELOOP system.
Only N-55 (S), Q-85 or S-95 should be used to ensure correct operation of i-stop system
(FOR STOP & START)/i-ELOOP system.
Consult an expert repairer, we recommend an Authorised Mazda Repairer for details.
*2 Not for i-stop system/i-ELOOP system.

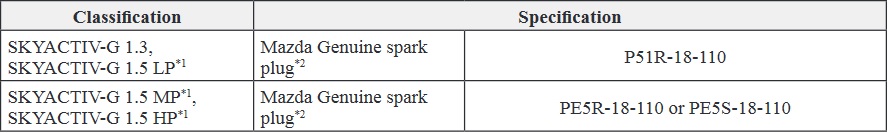

Spark-plug
*1 The alphabetical letters at the end of the engine types are short for the following:
LP: Low-Power
MP: Medium-Power
HP: High-Power
*2 The spark plugs provide the SKYACTIV-G its optimum performance.
Consult an expert repairer, we recommend an Authorised Mazda Repairer for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush.
The fine particulate coating on the iridium alloy and platinum tips could be damaged.
(Battery size - see Notes)
