7 - If Trouble Arises  |  Flat Tyre

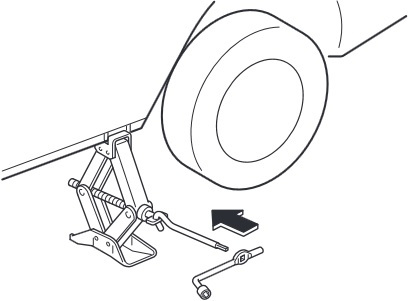

7. Insert the jack lever and attach the wheel brace to tyre jack.


WARNING

   Do not jack up the vehicle higher than is necessary:

Jacking up the vehicle higher than is necessary is dangerous as it could destabilize the vehicle resulting in an accident.


   Do not start the engine or shake the vehicle

   while it is jacked up:

Starting the engine or shaking the vehicle while it is jacked up is dangerous as it could cause the vehicle to fall off the jack resulting in an accident.


   Never go under the vehicle while it is jacked up:

Going under the vehicle while it is jacked up is dangerous as it could result in death or serious injury if the vehicle were to fall off the jack.



9. Remove the wheel nuts by turning them anticlockwise;

    then remove the wheel and centre cap.

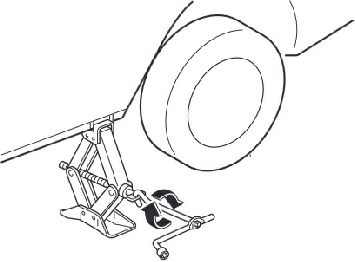

8. Turn the jack handle clockwise and raise the vehicle high

    enough so that the spare tyre can be  installed.


    Before removing the wheel nuts, make sure your Mazda is

    firmly in position and that it cannot slip or move.
