7 - If Trouble Arises  |  Flat Tyre

CAUTION

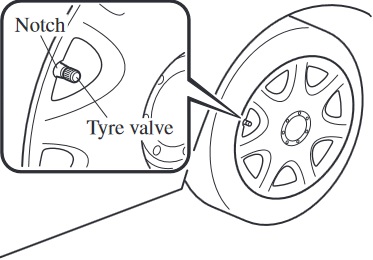

Align the notch on the wheel cover with the valve stem when installing it.

3. Place the jack on the ground.

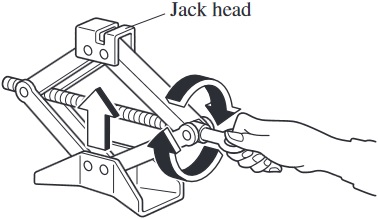

4. Turn the jack screw in the direction shown in the figure

    and adjust the jack head so that it is close to the jack-up

    position.

Damage could occur during installation if the wheel cover is not properly aligned.

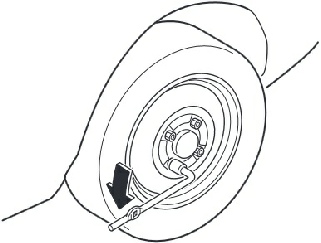

2. Loosen the wheel nuts by turning them anticlockwise

   one turn each, but do not remove any wheel nuts until

   the tyre has been raised off the ground.

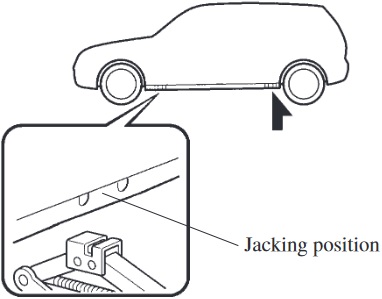

5. Place the jack under the jack-up position

    closest to the tyre being changed with the

    jack head squarely under the jack-up point.
