6 - Maintenance and Care | Owner Maintenance

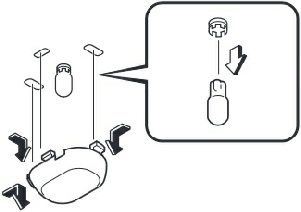

Boot light (Saloon)
1. Press both sides of the lens cap to remove it.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order of the
removal procedure.
Fuses
Your vehicle's electrical system is protected by fuses.
If any lights, accessories, or controls do not work, inspect the appropriate circuit protector.
If a fuse has blown, the inside element will be melted.
If the same fuse blows again, avoid using that system and consult an expert repairer, we recommend an Authorised Mazda Repairer as soon as possible.
Fuse Replacement
Replacing the fuses on the vehicle's left side.
If the electrical system does not work, first inspect the fuses on the vehicle's left side.
1. Make sure the ignition is switched off, and other
switches are off.
2. Open the fuse panel cover.
3. Install the new bulb in the reverse order of the
removal procedure.

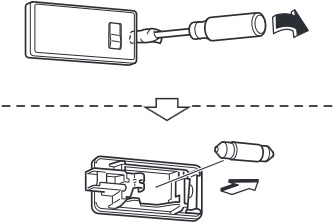

Luggage compartment light (Hatchback)
1. Wrap a small flathead screwdriver with a soft
cloth to prevent damage to the lens and
remove the lens by carefully prying on the
edge of the lens with the flathead screwdriver.
2. Disconnect the bulb by pulling it out.
