Page 40 of 58

6 - Maintenance and Care  |  Owner Maintenance

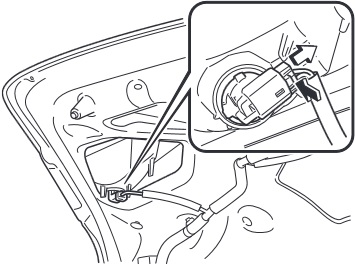

4. Disconnect the connector from the socket.

   Hatchback  (Number plate lights)

1. Make sure the ignition is switched  off, and

    the headlight switch is off.

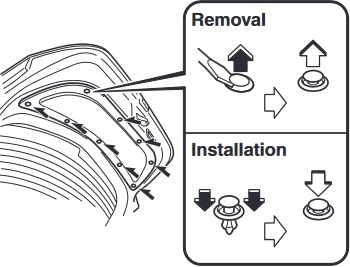

2. Pull the centre of each plastic retainer and

    remove the retainers.

3. Remove the cover on the interior surface of

    the liftgate.

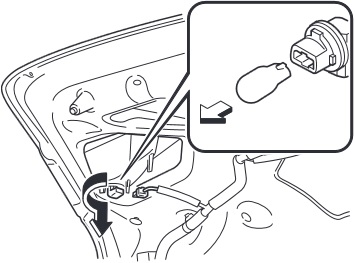

5. Turn the socket and bulb assembly

    anticlockwise and remove it.

6. Disconnect the bulb from the socket.

7. Install the new bulb in the reverse order of

    the removal procedure.
