5 - Interior Features  |  Audio System

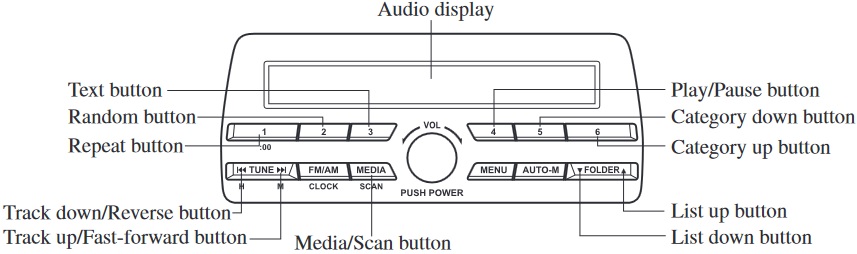

The figure, above, is an example showing the type A unit.

An iPod may not be compatible depending on the model or OS version. In this case, an error message is displayed.

NOTE

The iPod functions on the iPod cannot be operated while it is connected to the unit because the unit controls the iPod functions.

Playback

1. Switch the ignition to ACC or ON.

2. Press the power/volume dial to turn the audio system on.

3. Press the media button (MEDIA) to switch to the iPod mode and start playback.

NOTE

* When an iPod is not connected, the mode does not switch to the iPod mode.

* When there is no playable data in the iPod, “NO CONTENTS” is flashed.

* Do not remove the iPod while in the iPod mode.  Otherwise, the data could be damaged.

Pause

To stop playback, press the play/pause button (4).   Press the button again to resume playback.

Fast-forward/Reverse

Press and hold the fast-forward buttonto advance through a track at high speed.

Press and hold the reverse buttonto reverse through a track at high speed.

How to use iPod mode (Type A/Type B)
