5 - Interior Features  |  Audio System

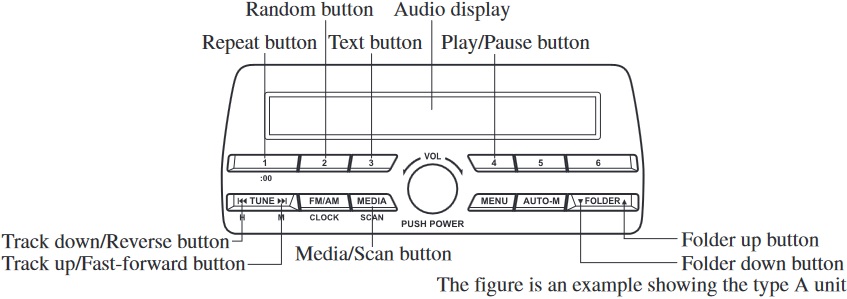

How to use USB mode (Type A/Type B)

This unit does not support a USB 3.0 device.

In addition, other devices may not be supported depending on the model or OS version.

Playback

1. Switch the ignition to ACC or ON.

2. Press the power/volume dial to turn the audio system on.

3. Press the media button (MEDIA) to switch to the USB mode and start playback.

NOTE

* Some devices such as smart phones may require a setting change to allow operation using a USB

   connection.

* When the USB device is not connected, the mode does not switch to USB mode.

* When there is no playable data in the USB device, “NO CONTENTS” is flashed.

NOTE

* Playback of the USB device is in the order of the folder numbers.

   Folders which have no MP3/WMA/AAC files are skipped.

* Do not remove the USB device while in the USB mode.  The data may be damaged.

Pause

To stop playback, press the play/pause button (4).

Press the button again to resume playback.

Fast-forward/Reverse

Press and hold the fast-forward buttonto advance through a track at high speed.

Press and hold the reverse buttonto reverse through a track at high speed.
