NOTE
* The information viewable in the display is only CD information (such as artist name, song title) which has been recorded to the CD.
* This unit cannot display some characters. Characters which cannot be displayed are indicated by an asterisk
.
Display scroll
Only 13 characters can be displayed at one time.

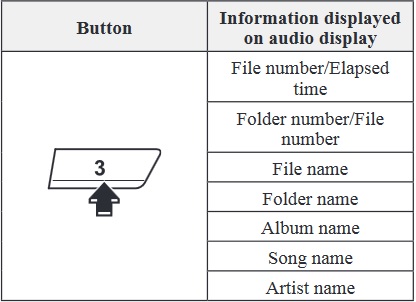

To display the rest of the characters of a long title, press and hold the text button (3). The display scrolls the next 13 characters.
Press and hold the text button (3) again after the last 13 characters have been displayed to return to the beginning of the title.
NOTE
The number of characters which can be displayed is restricted.
Message display
If “CHECK CD” is displayed, it means that there is some CD malfunction.
Check the CD for damage, dirt, or smudges, and then properly reinsert it.
If the message appears again, insert another known good CD.
If the message continues to appear, take the unit to an expert repairer, we recommend an Authorised Mazda Repairer for service.
How to use Auxiliary jack/USB port
Audio can be heard from the vehicle's speakers by connecting a commercially-available portable audio unit to the auxiliary jack.
Use a commercially-available, non-impedance (3.5
) stereo mini plug lead.
Contact an expert repairer, we recommend an Authorised Mazda Repairer for details.
In addition, audio can be played from the vehicle audio device by connecting a USB device to the USB port.
Refer to AUX/USB mode on page 5-36.
