5 - Interior Features  |  Audio System


Setting the time

The clock can be set at any time when the ignition is switched to

ACC or ON.

 1. To adjust the time, press the clock button (FM/AM) for about

     2 seconds until a beep is heard.


 2. The clock's current time will flash.

     Time adjustment

      * To adjust the time, press the hour/minute set button

         while the clock's current time is flashing.


    * The hours advance while the hour set button is

       pressed.

       The minutes advance while the minute set buttonis

       pressed.


 3. Press the clock button (FM/AM) again to start the clock.

Time resetting

 1. Press the clock button (FM/AM) for about 2 seconds until a

     beep is heard.



2. Press the :00 button (1).


3. When the button is pressed, the time will be reset as

   follows:

        (Example)

        12:01—12:29>12:00

        12:30—12:59>1:00



NOTE

* When the :00 button (1) is pressed, the

   seconds will start at “00”.

* Switching between 12 and 24-hour clock time:

  Press the menu button (MENU) several times until 12 and

  24-hour clock time are displayed.



 Turn the audio control dial in either direction, select the

 desired clock setting while the preferred clock time is flashing.

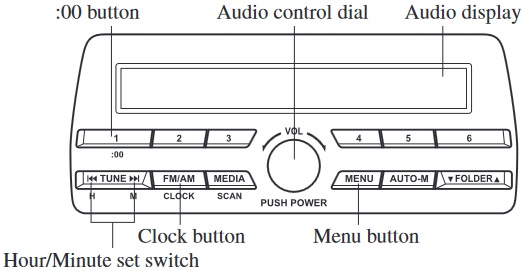

:00 button


Audio display


Audio control dial

Hour/Minute set switch

Clock button

Menu button

Clock

This figure is an example showing the type A unit.
