Page 21 of 56

5 - Interior Features  |  Audio System

*1 Type B

*2 Depending on the model,

     this function may not be available.

Power/Volume/Sound  Controls

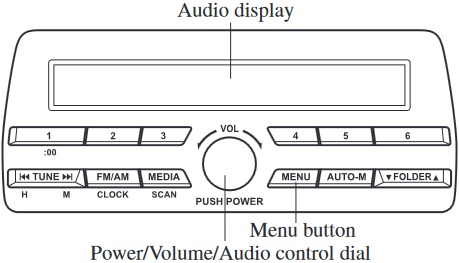

The figure is an example showing the type A unit.

Power ON/OFF

Switch the ignition to ACC or ON.  Press the power/volume dial to turn the audio system on.  Press the power/volume dial again to turn the audio system off.

Volume adjustment

To adjust the volume, turn the power/volume dial.  Turn the power/volume dial clockwise to increase volume, anticlockwise to decrease it.

Audio sound adjustment

1. Press the menu button (MENU) to select the function.

   The selected function will be indicated.

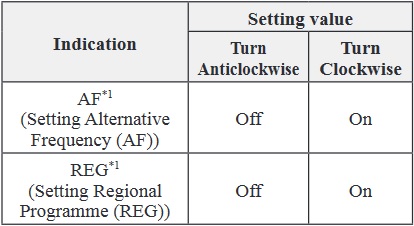

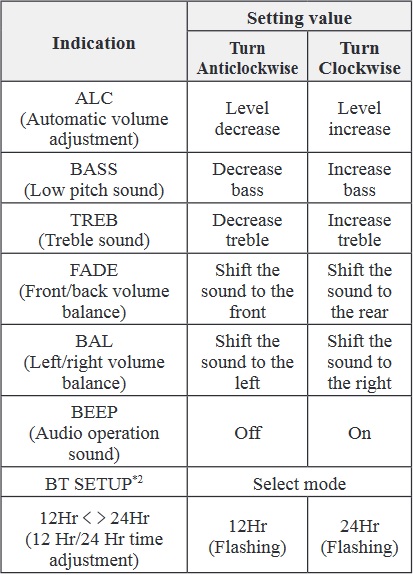

2. Turn the audio control dial to adjust the selected functions as follows:
