3 - Before Driving | Keys

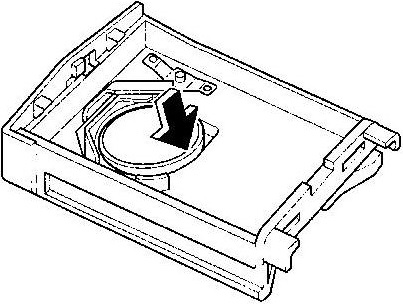

5. Put in the new battery (CR1620 or equivalent)
with the positive pole (+) facing down.
6. Align the front and back covers and snap the transmitter shut.

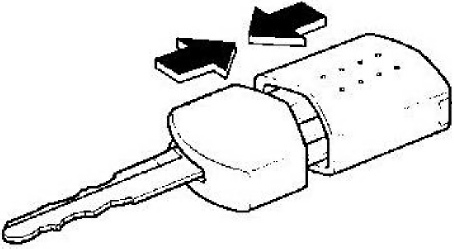

7. Align the key with the transmitter as shown in the figure,
and insert the key until a click sound is heard.
CAUTION
Insert the key into the transmitter securely until a click sound is heard.
If it is not inserted securely, it could detach from the transmitter.
Service
If you have a problem with the keyless entry system, consult an expert repairer, we recommend an Authorised Mazda Repairer.
If you transmitter is lost or stolen, bring all remaining transmitters to an Authorised Mazda Repairer as soon as possible for a replacement and make the lost or stolen transmitter inoperative.
CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
NOTE
The procedure here is the same for
both 2 or 3 button remote controls.
