SRS Air Bag Deployment Criteria

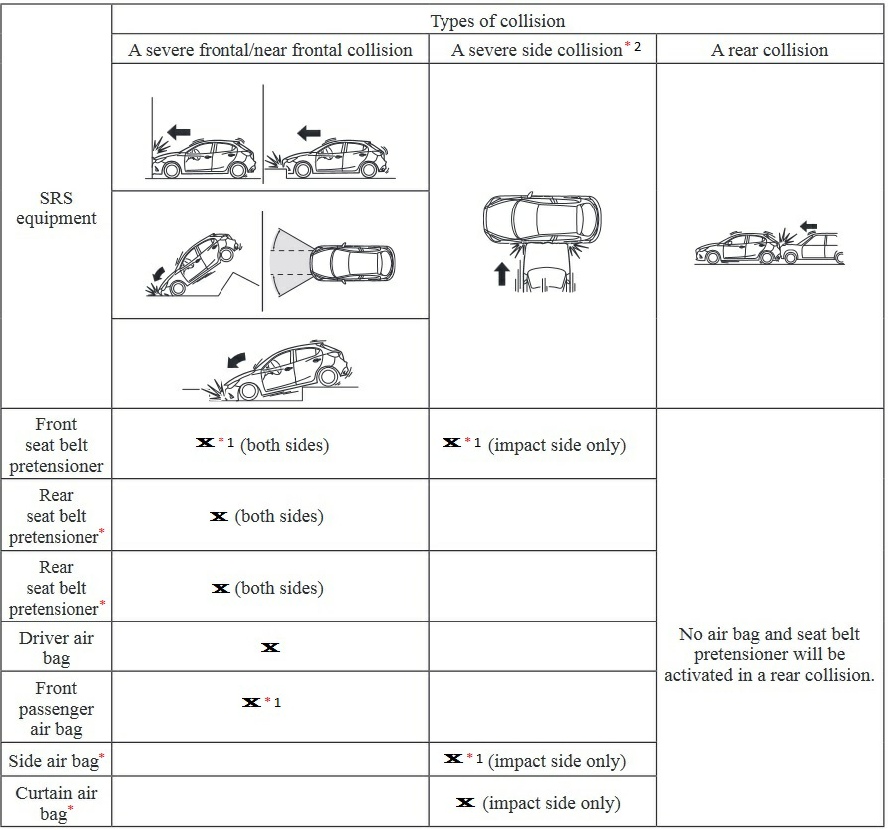

This chart indicates the applicable SRS equipment that will deploy depending on the type of collision.

(The illustrations are the representative cases of collisions.)

(With Front Passenger Air Bag Deactivation Switch)

The front passenger front and side air bags and the front seat belt pretensioner are designed to deploy depending on the status of the front passenger air bag deactivation switch.

(With Side/Curtain Air Bags)

In a side collision, the front seat belt pretensioners and the side/curtain air bags deploy

(only on the side in which the collision occurs).

* 1.

* 2.

X  :  The SRS air bag equipment is designed to deploy in a collision.

* Some models.
